Product Details:
Payment & Shipping Terms:
|
| Product Name: | Duplex Steel Pipe | Size: | 6mm-325mm |
|---|---|---|---|
| Thickness: | 1mm-10mm | Grade: | S31803 S2205 |
| Standard: | ASTM/GB/DIN/JIS | Treatment: | Cold Rolled/drawn |
| Delivery Condition: | Annealing | Application: | Chemical,petroleum, Medicine, Food, Nuclear Power, Boiler, Gas, Machinery, Ship Building |
| Highlight: | Nickel Alloy Tube,Seamless Alloy Pipe |
||

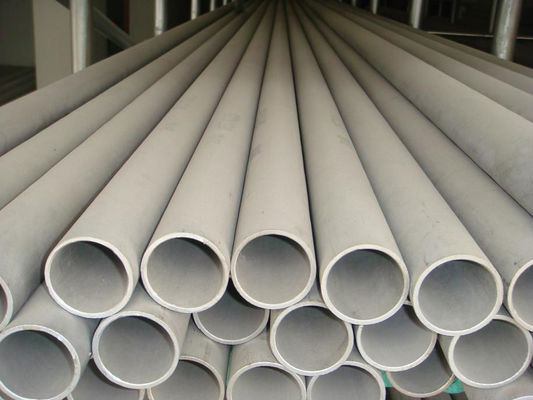

Large Diameter 31803 S2205 Super Duplex Stainless Steel Tube 1mm - 10mm Thickness
Specifications:
S31803 dual phase stainless steel tube characteristics
PREN value 32 ~ 33
The corrosion resistance of the alloy S31803 AISI is between 316L UNS and 6%Mo+N austenitic stainless steel.
The yield strength is stronger than that of 18-8 type austenitic stainless steel by about 2 times.
|
Technical Parameter for Duplex Steel Pipe |
Tensile Strength |
≥620Mpa |
|
Yield Strength 0.2% |
≥450Mpa |
|
|
Elongation % |
≥25 |
|
|
HRC |
≤30.5 |
|
|
HB |
≤290 |
|
|
PRE |
32-33 |
|
|
Surface |
Acid wash, annealing |
|
|
Ends |
Beveled and Caps |
|
|
Packing |
Woven bags or wooden cases |
About 2ton for each bundle |
|
Dimension |
OD Size |
6mm - 325mm |
|
Thickness |
1mm - 10mm |
|
|
Length |
5 - 5.8m, 6m,double random length |
|
|
Certificate |
ISO/SGS/BV/Lloyd/ABS/CCS/RINA/GL/DNV |
|
Description:
S31803 Duplex steel pipe chemical component
S31803 duplex stainless steel tube is a medium alloy duplex steel which has good resistance to chloride stress. In the alloy type - representative brand is S31803 UNS (22Cr-5Ni-3Mo-0.15N); S31803 dual phase steel tube in three kinds of dual phase steel (2205 duplex stainless steel tube, 2507 duplex stainless steel tube, S31803 duplex stainless steel seamless tube) in the most widely used.
Applications:
Used in industries as chemical engineering, petroleum, medicine, food, energy, nuclear power, aerospace,
environmental protection, boiler, gas, war industry, machinery, ship building and so on.
Competitive Advantage:
Our factory is near to raw material market and high-speed way, the producing cost is low.
Our factory have long history for producing Duplex Steel Pipe, both producing and testing machine is
advanced and perfect.
Our factory was certificated by BV/ISO/LR/RINA/CCS/GL/ABS/DNV, which can improve the quality.
We participated in many famous projects with our pipes.
Duplex Steel Pipe
